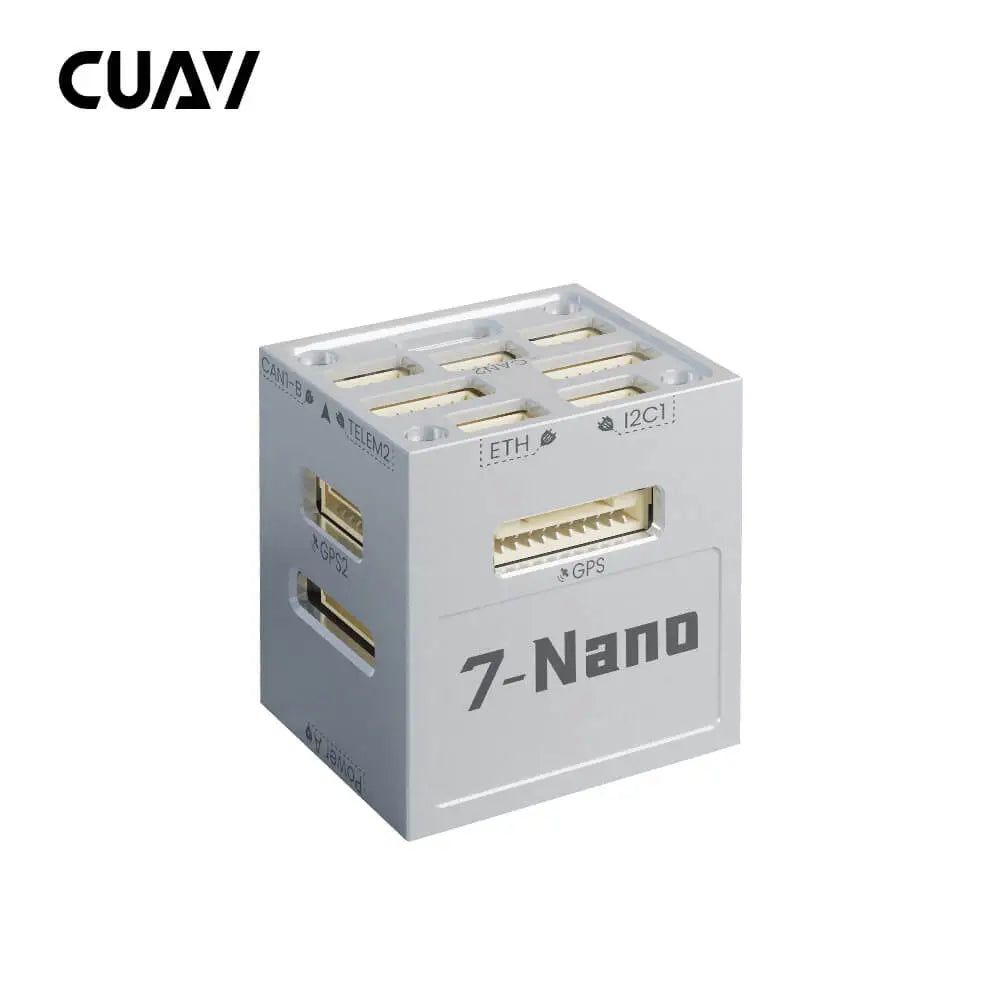

CUAV New FPV Drone Small Size Cube 7 Nano Controller Flight Control Board

CUAV 7 Nano - Micro Size, Maximum Intelligence

Industrial Power for Micro UAVs: Cube 7 Nano

The CUAV 7 Nano is one of the world's most advanced "micro" autopilots, specially developed for miniature unmanned systems. Despite weighing only 33.8 grams and being the width of a coin, it houses the STM32H7 processor power that manages giant UAVs. It offers uncompromising performance for FPV drones, micro VTOLs, and underwater vehicles (UUVs) where space is limited.

Why Choose CUAV 7 Nano?

• H7 Processor Architecture: The STM32H753 processor running at 480 MHz effortlessly executes the most complex autonomous tasks, LUA scripts, and FFT filtering algorithms with its dual-precision FPU.



• 100M Ethernet Interface: Thanks to the built-in Ethernet port, rare in a board of this size, it provides high-bandwidth data transfer with companion computers like NVIDIA Jetson or Raspberry Pi.

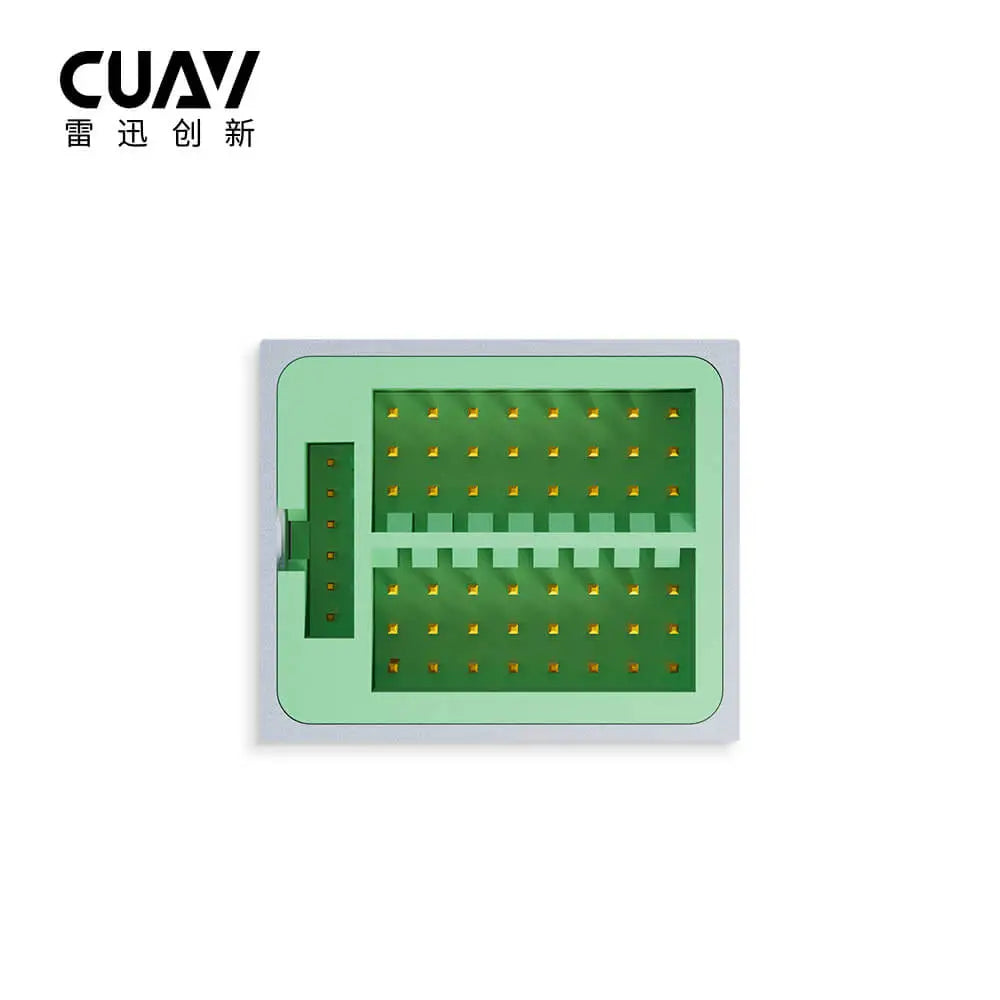

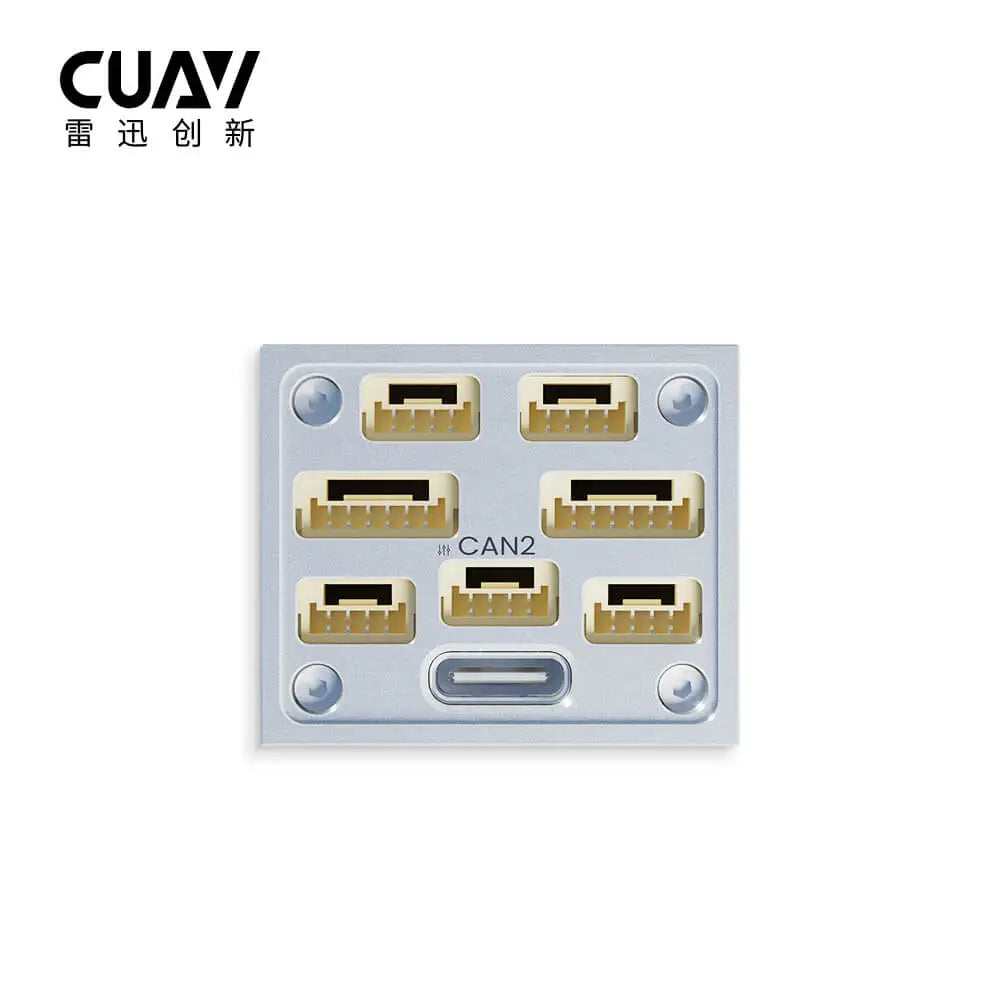

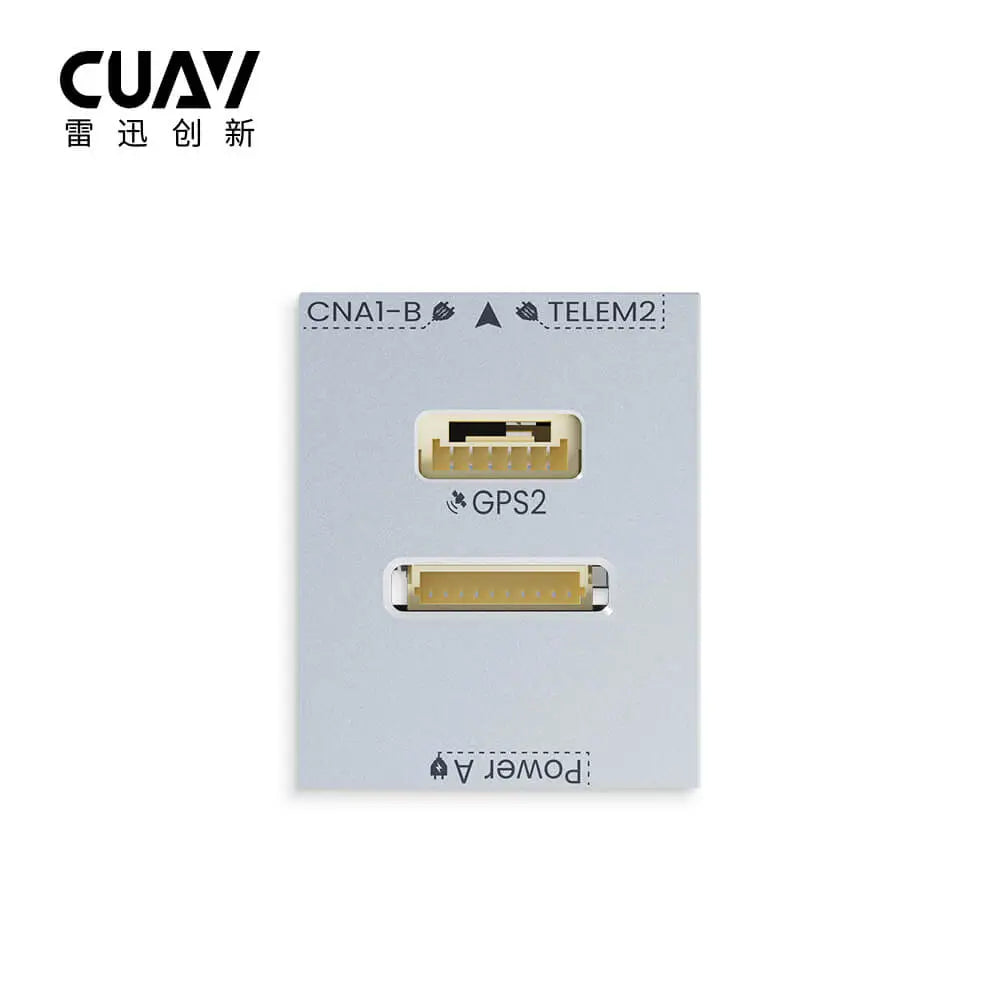

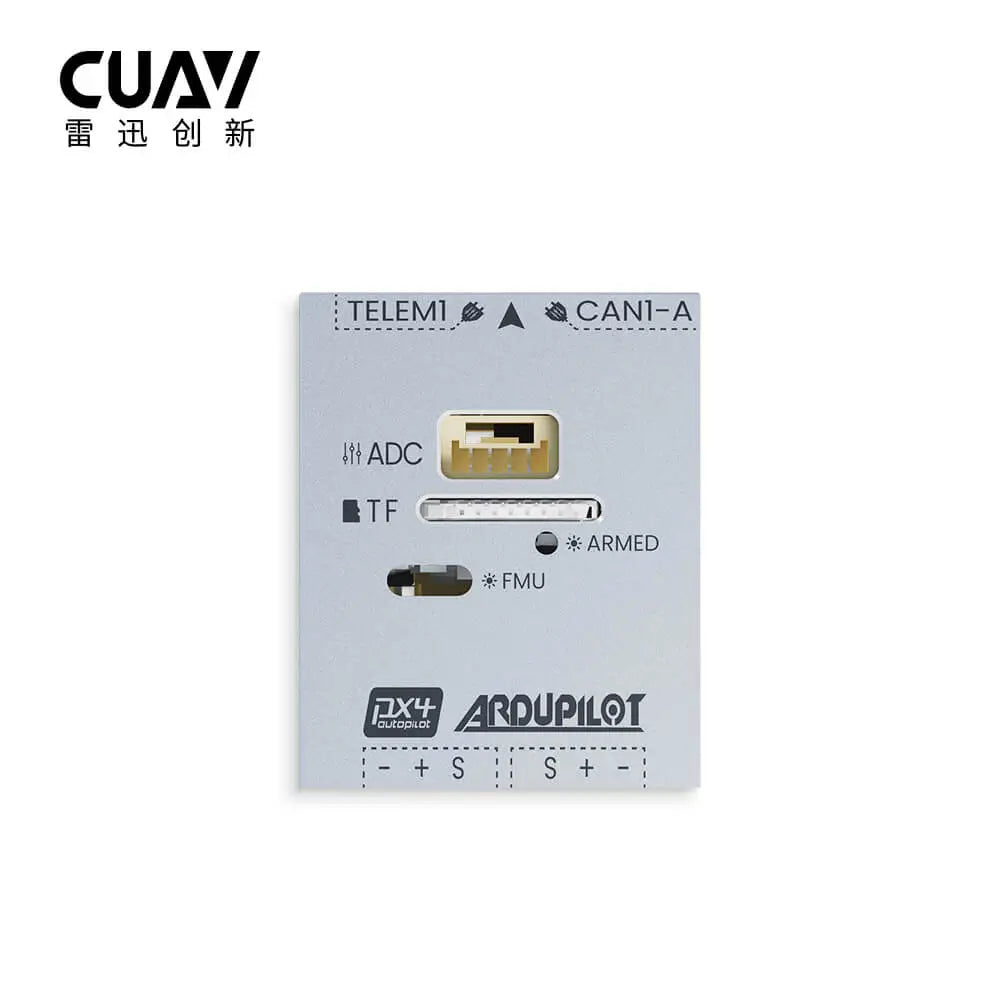

• Innovative Stacked Design: This structure, where all components are positioned vertically, minimizes the board's footprint while providing easy installation thanks to side-mounted ports.



• Industrial IMU Redundancy: Despite its small size, it features a dual-redundant industrial-grade IMU structure. If one sensor fails, the system seamlessly switches to the backup.



• Flexible PWM Outputs (3.3V / 5V): Thanks to software-switchable PWM voltage, it provides full compatibility with both sensitive digital servos and high-voltage systems requiring noise immunity.



Technical Specifications Table

Critical Advantage: The CUAV 7 Nano, especially when used with the optional high-voltage (70V / 16S) PDB module, allows you to manage industrial power even in micro-sized drones.
