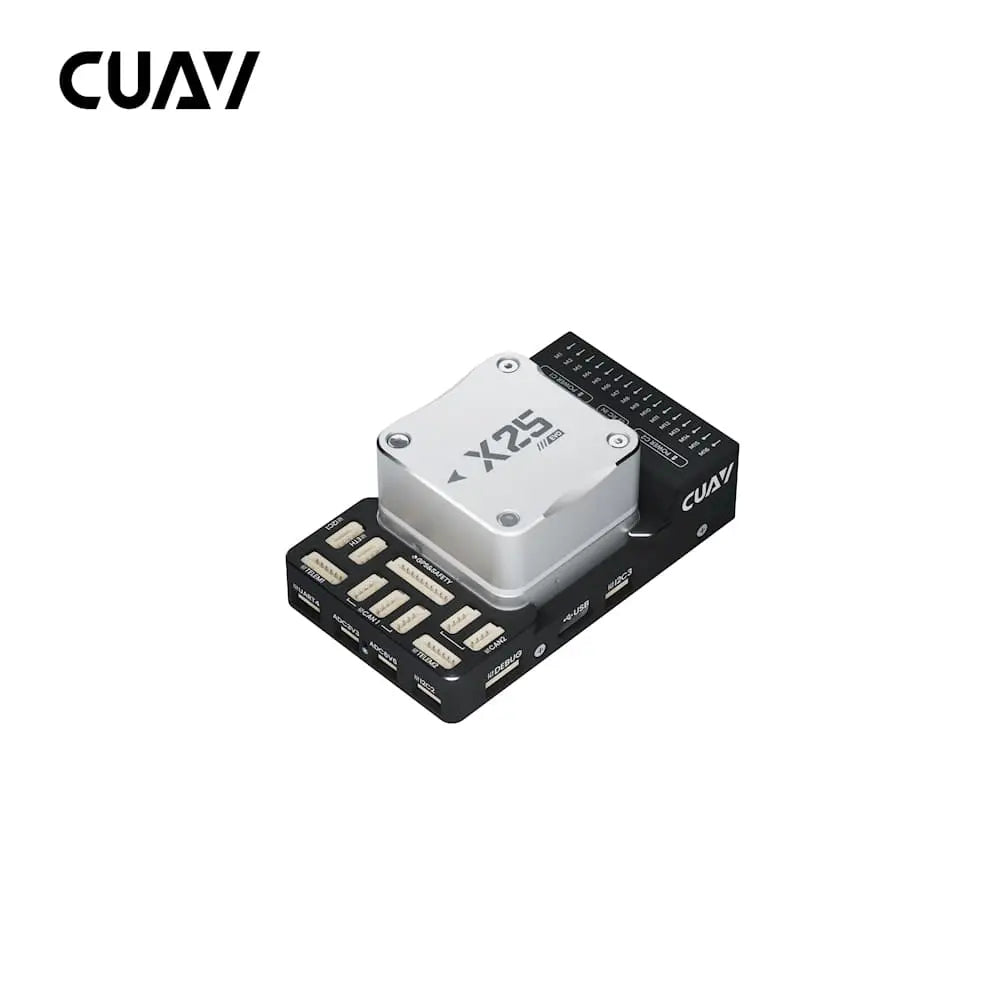

CUAV X25 Evo - Next-Generation Industrial Flight Control System
Power, Safety, and Intelligence: A New Standard in Unmanned Systems
The CUAV X25 Evo redefines "Core" control technology for professional unmanned systems. Combining the immense power of the STM32H7 processor with a revolutionary power architecture and an industrial-grade sensor matrix, the X25 Evo offers unparalleled stability for agricultural spraying, heavy-lift transportation, and autonomous missions. It is fully compatible with both ArduPilot and PX4.
Why Choose the CUAV X25 Evo?
-
Revolutionary Power Architecture: The X25 Evo supports a wide-range high-voltage input from 10V to 18V, increasing power efficiency. With its built-in 5V/15A DC-DC converter, it can provide up to 5V/12A output for external devices, powering heavy-load hardware.
-
4th Generation Shock Absorption System: CUAV's patented tilt-symmetric damping matrix system absorbs high-frequency vibrations, ensuring sensor data remains clean even under the most demanding conditions.
-
Industrial IMU Sensor Matrix: Equipped with 3 sets of TDK industrial-grade IMUs, 2 sets of barometers, and an RM3100 magnetometer. Thanks to the dual-temperature compensation system, temperature-induced "drift" has been reduced by 15%.
-
Global Connectivity (Ethernet + CAN): The built-in 100M Ethernet port provides high bandwidth and real-time data flow for companion computer connections (Jetson, Raspberry Pi).
-
PMU 2 Lite Standard Package: The included PMU 2 Lite module supports input voltages up to 70V and allows for current monitoring up to 220A.
Technical Specifications Table
| Feature | Detail |
| Processor | STM32H7 Arm® Cortex®-M7 (480MHz, 2MB Flash) |
| Sensors | 2x IIM-42653, 1x IIM-42652, RM3100 Compass |
| Barometer | TDK IPC20100 & Bosch BMP581 (Dual Redundant) |

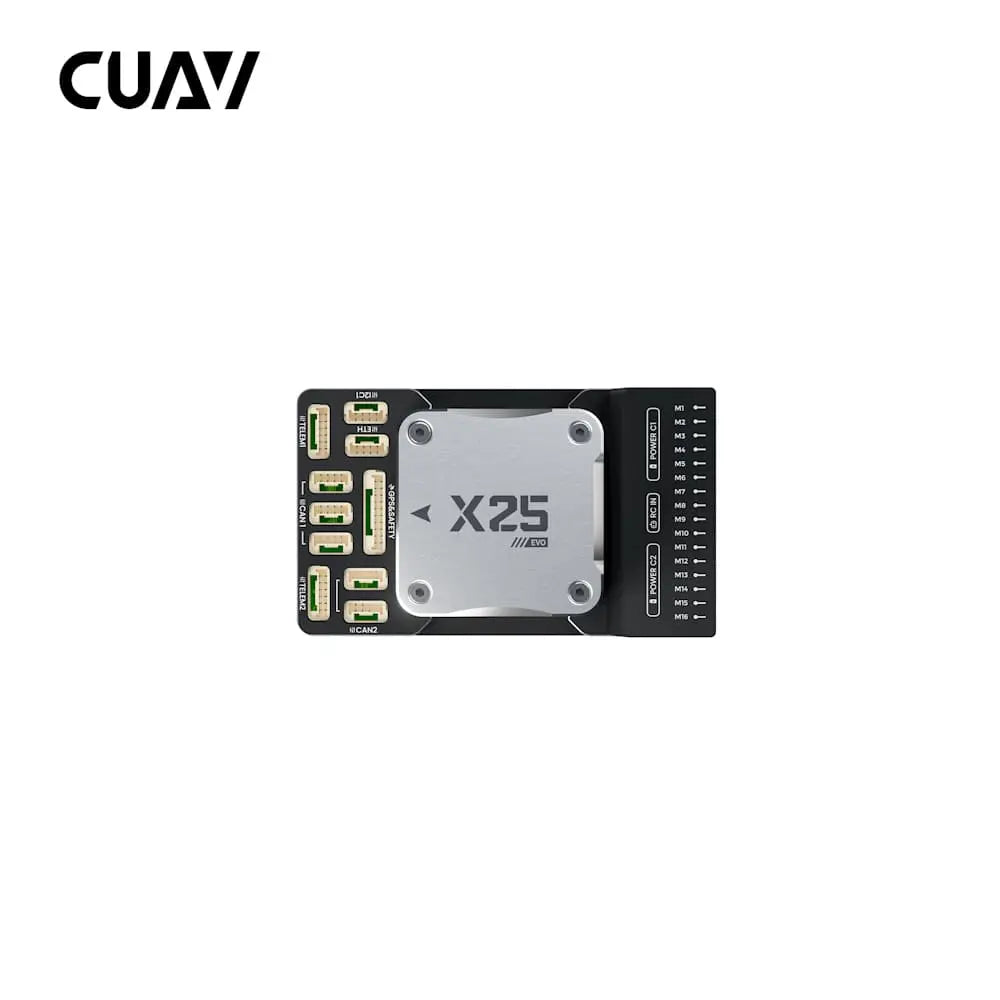

| PWM Channels | 16 Channels (3.3V / 5V Software Selectable) |
| Power Input | 10V ~ 18V (Standard Power Rail) |
| Ethernet | 100M High-Speed Interface |
| Dimensions / Weight | 76.5 x 45.45 x 32.2 mm / 110g |
| Operating Temperature | -20°C to +85°C |
Professional Advantage: The X25 Evo allows you to change PWM output levels (3.3V or 5V) via software. This prevents signal loss in long cable runs and ensures full compatibility with different servo/ESC types.
