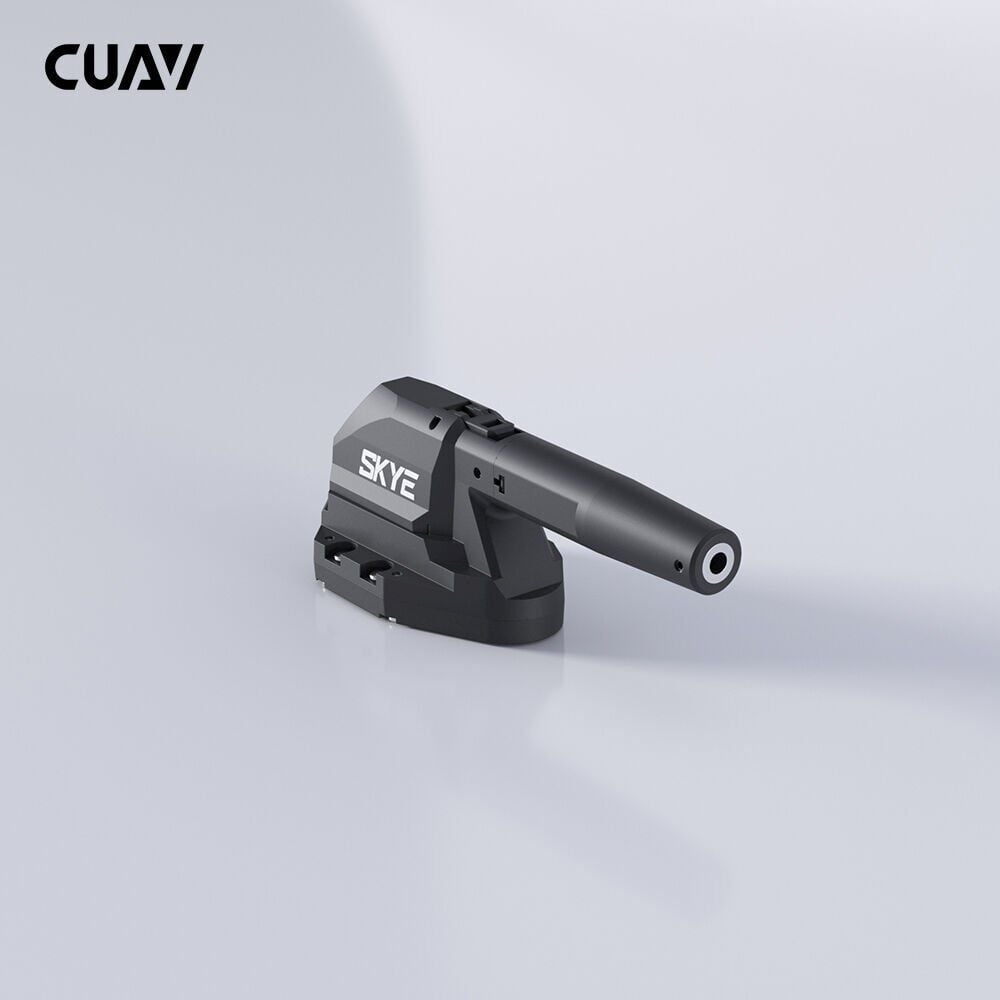

SKYE
Hava Hızı Sensörü
Çift Sıcaklık Kontrol Sistemi
Akıllı Buz Çözme
Yağmur Geçirmez Yapı
DroneCAN Protokolü
Özellikler
| Main Parameter | |
|---|---|
| Processor | STM32F4 |
| Protocol | DroneCAN |
| Pitot tube temperature control type | Resistance heating |
| Airspeed sensor | MS5525 |
| Sensor performance | |
| Airspeed measurement range | ±500km/h |
| Airspeed accuracy | ±0.69Pa |
| Total Error Band | ±2.5%FS |
| Temperature measurement range | -20℃-125℃ |
| Humidity measurement range | 0-100% |
| Pysical characteristics | |
| Pitot tube heating power | 35W |
| DC IN | Default 12-36V |
| Operating Temperature | -20℃±75℃ |
| Size | 82.5*30.4*28.2mm |
| Weight | 22g |
| Protection Level | IP44（To be installed on request） |
